Extruded Heat Sink Catalog

Minimum Order Quantity: 500kg Per Shape
Contact Us About Your Project

Browse Our Selection of 260+ Open Dies Below – MOQ: 500kg Per Shape

Below are 260+ drawings of open extrusion shapes. Please note that we carry no stock of these extrusions and they are produced in mill quantities only, starting from 500kg per shape. Utilizing these open dies will eliminate tooling costs for your heatsink project. If you are interested in a quote, reach out to us with the section number, desired quantity, and any requirements you have. If you have a custom aluminum extrusion shape, you can contact us for a quote as well. If you have any questions or would like a downloadable version, feel free to contact us.

⚠️ Please note that our minimum order quantity (MOQ) is 500kg (0.55 US Tons) per shape. ⚠️

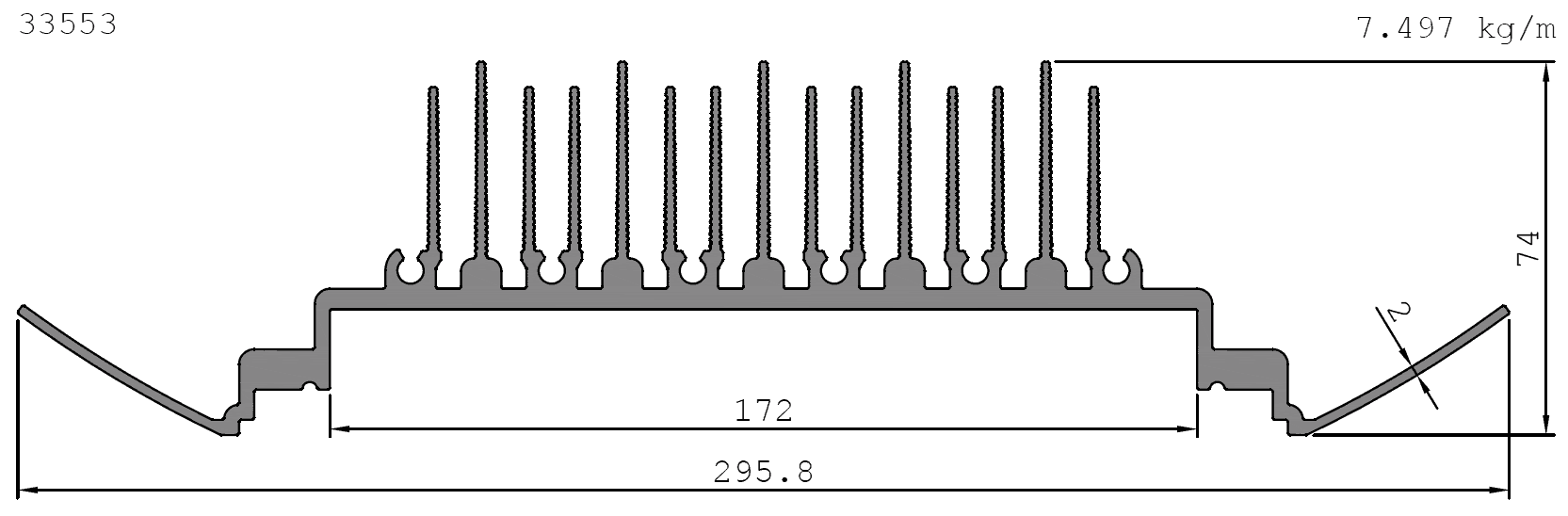

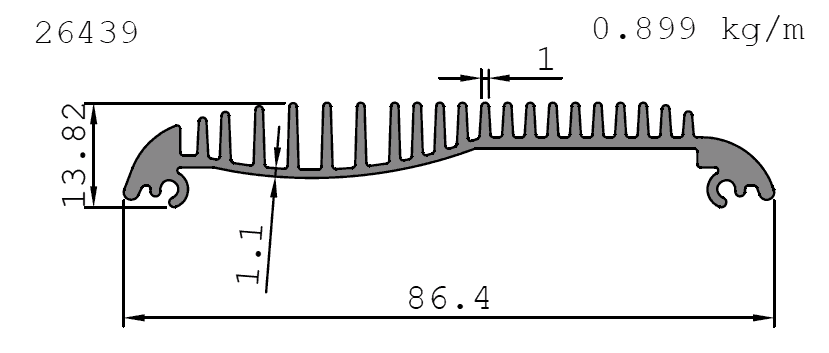

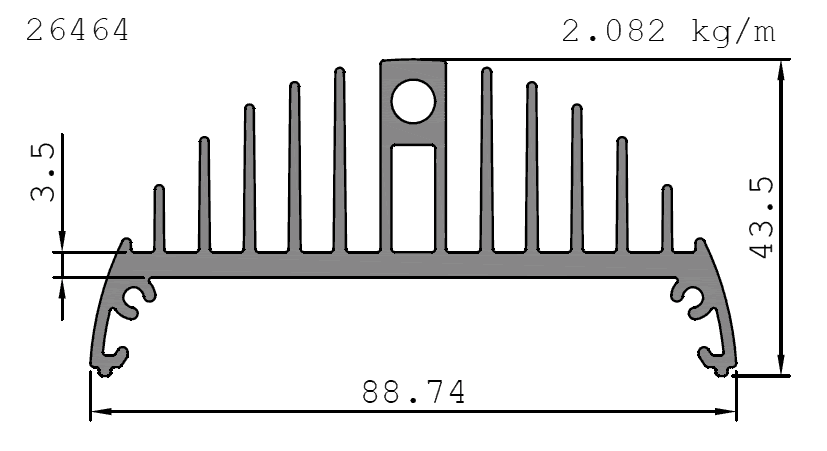

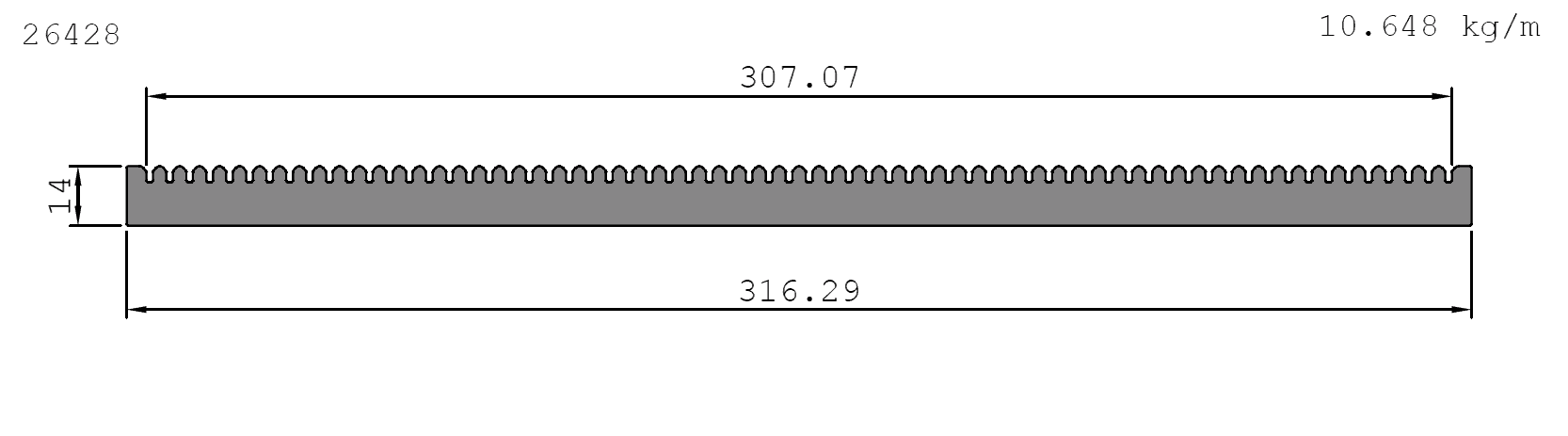

Extrusion Sections

Click an image to zoom in.

Can't Find the Exact Shape You're Looking For?
