Handrail Extrusion Shapes – Stock Dies

Below you’ll find our collection of handrail extrusion dies which can be used for your residential or commercial project. Using these dies allows you to avoid the tooling costs associated with custom extrusions. The dies are housed at our partner extrusion facilities in India, which are ISO 9001-2015 certified. The dies are machined from H13 steel and are cataloged and maintained at in-house tooling facilities. Should one or more of these dies suit your needs, reach out to us for a quote. Please provide the section number, if applicable, and the quantity required.

Minimum Order Quantity (MOQ): 500 kgs (0.55 US Tons)

Note: Click each image below to see the full-sized drawing.

ImageProfile No.Section No.ABWeight kg/m
1J-19204n/an/a0.851
2J-19205n/an/a0.221
3J-19209n/an/a0.364
4aJ-192241.34n/a0.855
4bJ-192231.92n/a0.975
4cJ-192063.00n/a1.210
5aJ-192261.20n/a0.684
5bJ-192251.65n/a0.854
5cJ-192072.50n/a1.281
6aJ-192181.1012.700.738
6bJ-192171.1512.500.765
6cJ-192151.4012.500.976
7aJ-192270.93n/a0.763
7bJ-192221.19n/a0.970
7cJ-192201.30n/a1.067
8J-10221n/an/a0.612
9J-19228n/an/a2.014
10J-19229n/an/a1.278
11J-19233n/an/a1.268
12J-19234n/an/a1.191
13J-19235n/an/a0.819
14J-29012n/an/a0.922
15J-19243n/an/a1.327
16J-19236n/an/a0.926
17J-19240n/an/a1.847
18J-19241n/an/a0.711
19J-19242n/an/a1.179

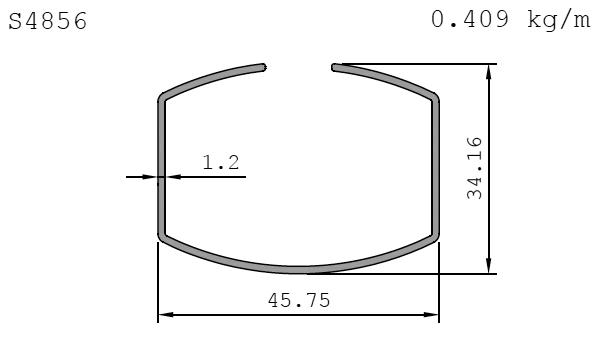

20J-S4856n/an/a0.409
21J-S4857n/an/a0.509
22J-S4810n/an/a1.290

Call or Email our office in Dover, New Hampshire, USA to discuss your project.

Standard Aluminum Extrusion Shapes

Many projects require standard shapes such as angles, tubes, and channels. We offer these standard aluminum shapes in widths ranging from 6mm up to 180mm (1/4″ to 7″). Extrusions are made to order in alloys from the 6000 and other aluminum series. They can then be heat treated to enhance strength and secondary operations can be performed to give you the finished product you are looking for. To view our catalogs of standard shapes, click the links below. You’ll find hundreds of stock dies to choose from. Reach out to us if you have any questions.

Need Something Else? Custom Extrusion Capabilities

When it comes to creative architectural projects, one-size-fits-all handrail options are not always adequate. Our custom extrusion and secondary operations give you the opportunity to get the exact extrusions you need for your project. If you have a custom extrusion design, we can help you save costs by manufacturing in India while still meeting all your specifications and quality requirements. Our partner extrusion facilities have complete tool & die shops, in-house foundries, surface finishing operations, and fabrication services to help you achieve your desired results.

Die Being Machined from H13 Steel

Dies & Tooling

For custom extrusion projects, dies are machined from H13 steel. Profiles can be extruded up to 400mm (15 3/4″) depending on shape, size and CCD. Tooling costs are generally between $800-$1600 with extrusion lead times of 1-2 weeks.

Newly-Created Aluminum Billets

Alloy & Temper

Depending on the needs of your project, an appropriate alloy can be selected for desired strength, corrosion resistance, and other properties. Alloys in the 1000, 2000, 3000, 5000, 6000 and 7000 series are produced at in-house foundries.

Profiles with Varied Finishing

Surface Finishing

Your choice of surface finish impacts both the appearance of your profiles and their level of corrosion resistance. We offer surface finishes such as anodization, powder coating and sublimation for wood-grain finish. This way you get the look you desire.

Extrusion Being Cut

Fabrication Services

After extrusion is completed, your profiles can undergo fabrication. Secondary services like drilling, cutting, or stamping can be performed in-house. This saves you time and the cost of doing these at your own facilities.
